SPECS & PARAMETERS

Geometry
Electronics
Mechanical System
Performance
What’s in the Box

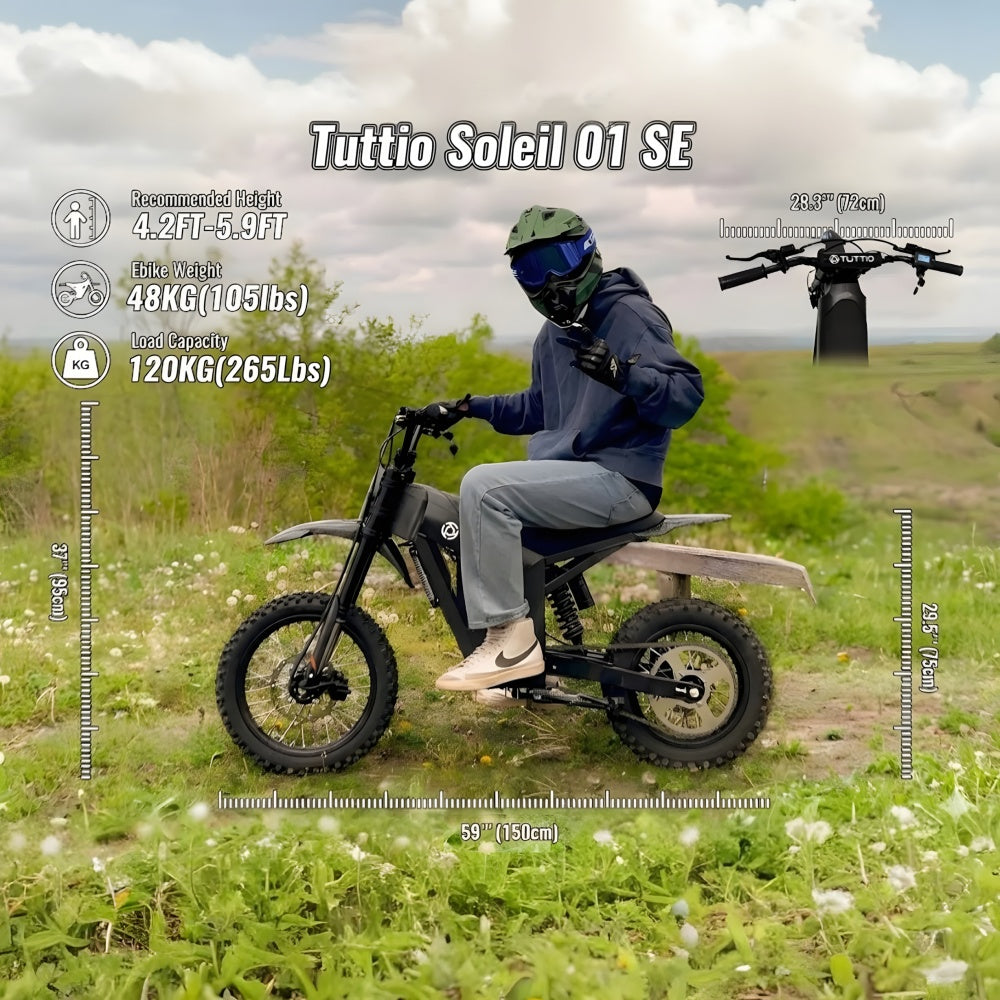

Suitable Rider Height3'11" (120 cm) – 6'1" (185 cm)

Seat Height29.5" (75 cm)

Bike Height37" (95 cm)

Wheelbase40.9" (104 cm)

Ground Clearance9.8" (24.9 cm)

Handlebar Width28.34" (72 cm)

Overall Size59" × 28.3" × 37" (150 × 72 × 95 cm)

Package Size53.9" × 11.8" × 39.7" (137 × 30 × 101 cm)

Geometry

Charger48V 2.5A

Charger Voltage100–220V, 50–60Hz

Charging Time0%–100% in 7–8 Hours

DisplayBlack & White Display

Controller48V 70A

Battery48V 21Ah Lithium-Ion Battery

Waterproof RatingIPX6

Electronics

FrameAluminium Alloy

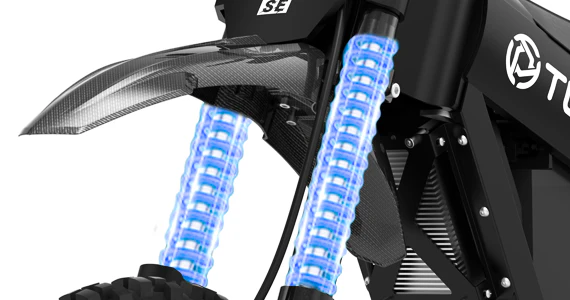

Front SuspensionHydraulic Suspension, 40 mm Diameter, 6-Inch Travel

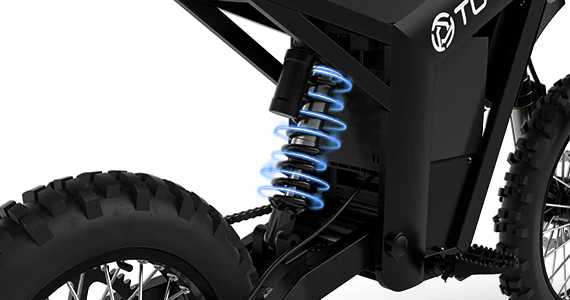

Rear SuspensionNitrogen Shock Absorber

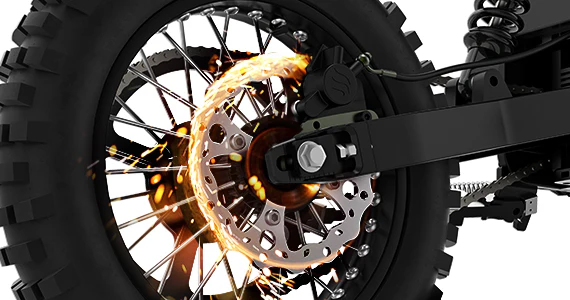

BrakesHydraulic Heavy-Duty Brake

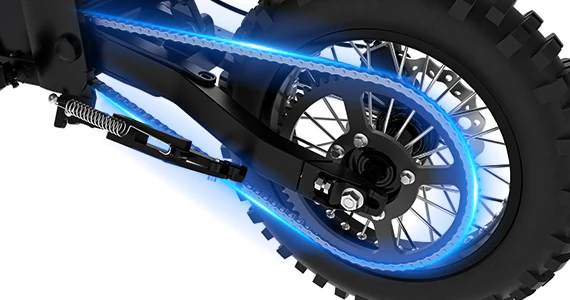

DrivetrainChain Drive

Chain116 Links (420 Chain), Heavy-Duty Chain

Front Tire14" × 2.5" Junkai Tire

Rear Tire12" × 3.0" Junkai Tire

Mechanical System

Top Speed37 Mph (60 Km/h)

Range45 Miles

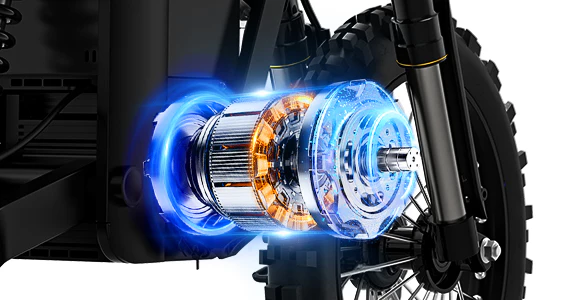

MotorHigh-torque brushless motor with smooth power delivery
(200 N·m Torque)

Max Climbing30°

Ride ModeThree-Speed Zero Start

Performance

Electric Dirt Bike ×1 — User Manual ×1

Front Wheel ×1 — Sticker Set ×1

Handlebar ×1 — Pegs ×2

Throttle with Display & Key ×1

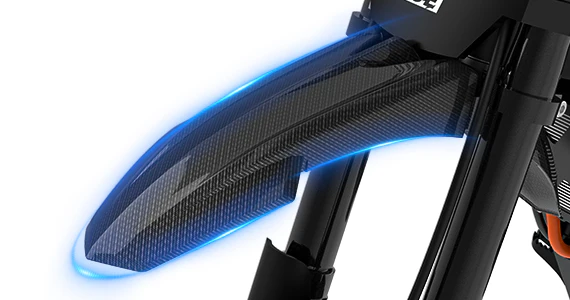

Front Fender ×1 — Tool Kit ×1

Rear Fender ×1 — Charger ×1

Handlebar Protector ×1

Handlebar Blocks ×2 —— Hardware Set ×1

Front Number Board ×1
Note:Note: Integrated frame battery.
85% pre-assembled


What’s in the Box

FAQs

Please read our FAQs page to find out more.

What are the specifications of the bike?

The Soleil01 SE is engineered for high-torque performance and uncompromising durability. Built with premium components, it delivers power and reliability that standard e-bikes simply can't match.

⚡ Power & Electronics

  • Motor: 3000W Peak / 2000W Rated Brushless DC Motor. Engineered for instant, massive acceleration.
  • Controller: 48V 70A High-Output Controller. Delivers a massive 200N.m of torque to conquer steep inclines.

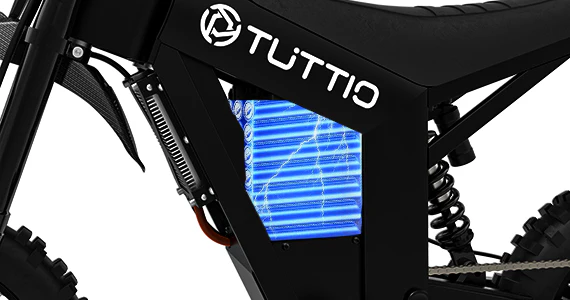

  • Battery: 48V 21Ah Lithium-ion featuring an automotive-grade Battery Management System (BMS) for safety and longevity.
  • Top Speed: 37 MPH (60 km/h).
  • Estimated Range: Up to 45 Miles (72 km), depending on terrain, rider weight, and ride mode.

🛠️ Chassis & Suspension

  • Front Suspension: Heavy-duty Hydraulic Fork (40mm diameter, 6" / 150mm travel) for aggressive shock absorption.
  • Rear Suspension: Nitrogen-charged Shock Absorber for superior damping and a smooth ride on rough trails.
  • Brakes: High-performance Hydraulic Disc Brakes (Front & Rear) for responsive stopping power.
  • Tires: Premium Aggressive Off-Road Knobby Tires (Front: 14"x2.5" / Rear: 12"x3.0") for maximum dirt traction.
  • Water Resistance: IPX6 Rated. Built to withstand mud, rain, and post-ride washdowns.

📐 Dimensions & Sizing

  • Seat Height: 29.5" (75cm) – Ergonomically designed for riders 3'11" to 6'1" (120cm - 185cm).

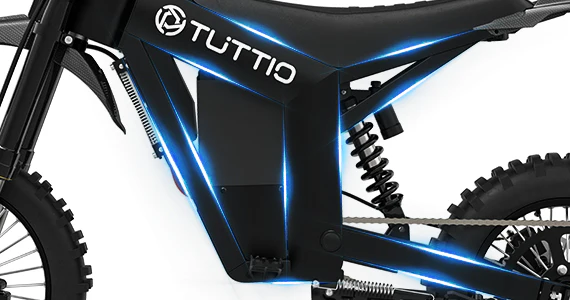

  • Net Weight: 105 lbs (48kg) – Constructed with a solid, lightweight aluminum alloy frame.
  • Wheelbase: 40.9" (104cm).
  • Max Load Capacity: 265 lbs (120kg).
What's in the box?

Draft Answer:
Your package includes the Soleil01 SE Electric Dirt Bike (85% assembled), a smart 48V charger, a set of keys, a user manual, and a dedicated toolkit for final assembly.

  • Important: We perform a pre-shipment quality check. However, if you find any accessories missing (like grips or bolts) due to transit handling, please email us immediately at tuttiomake@gmail.com.We will ship replacement parts via express mail right away.
What age is the Soleilo1 SE designed for?

The Soleil01 SE is best suited for teens aged 13 and up, as well as smaller-sized adults. Please refer to the size chart on the product page to make sure the fit is right for you.

Does the ebike require assembly? Is it hard to put together?

The bike arrives roughly 85% assembled. Most riders spend about 30-45 minutes installing the front wheel, handlebars, and fender.

  • Community Feedback: Many customers find it "super easy to assemble" and "detailed instructions are included."
  • Support: If you are not mechanically inclined, we recommend taking it to a local e-bike shop, or contacting our support team for video guidance.
Are the parts interchangeable? Can I buy spare parts separately?

Yes! One of the biggest advantages of the Soleil01 SE is its mod-friendly design.

  • Upgradability: As confirmed by our riding community, this bike is "very easy and cheap to mod" using standard parts (like 420 chains or standard handlebars).
  • Factory Support: Unlike drop-shippers, we are a factory-direct brand. We stock essential replacement parts (throttles, controllers, batteries). If you need a specific part for repair, contact us directly—we support our riders long after the warranty expires.
What kind of warranty and support do you offer?


Unlike generic resellers, TuttioMake works directly with the product source and provides official
after-sales support for every Soleil01 SE order.

Limited Factory Warranty


Soleil01 SE includes limited warranty support for eligible manufacturing defects. Main parts and
components are covered according to our Warranty Policy. Frame, battery, and wearable parts may
have different warranty terms.

Direct Parts Support


Because we work closely with the production and supply chain, we can help provide replacement parts
and repair support when needed. Essential components such as controllers, chargers, brake parts,
body panels, and other service parts may be supplied based on availability and warranty review.

Expert Support


You are not only talking to a sales agent. Our support team understands the product and can provide
practical guidance for setup, troubleshooting, replacement parts, and after-sales service.


For warranty details, please refer to our Warranty Policy or contact us at
info@tuttiomake.com.

Where does the bike ship from? Will it arrive in one package?

To provide faster delivery and better local fulfillment, TuttioMake ships orders from our available local warehouses whenever possible, including our U.S. warehouse and our Europe warehouse in Poland. Depending on inventory availability, product type, and delivery location, some items may ship from different warehouses or logistics partners.

Complete Bike Orders

If you purchase a complete electric dirt bike, the bike is usually shipped as one full unit. The frame, battery, and core components are packed securely and delivered together in the same shipment whenever possible.

Accessories & Add-ons

If your order includes additional accessories, such as mirrors, lights, phone mounts, or other add-ons, these items may ship separately from the bike. Accessories may be fulfilled from a different warehouse to speed up processing and delivery.

Tracking Information

In some cases, you may receive multiple tracking numbers if accessories or add-ons are shipped separately. Items may arrive on different days, but all available tracking details will be provided once your order ships.

For U.S. orders, products usually ship from our U.S. local warehouse. For EU Soleil01 SE orders, products usually ship from our Poland warehouse. Estimated delivery is usually 3–6 business days after dispatch.
